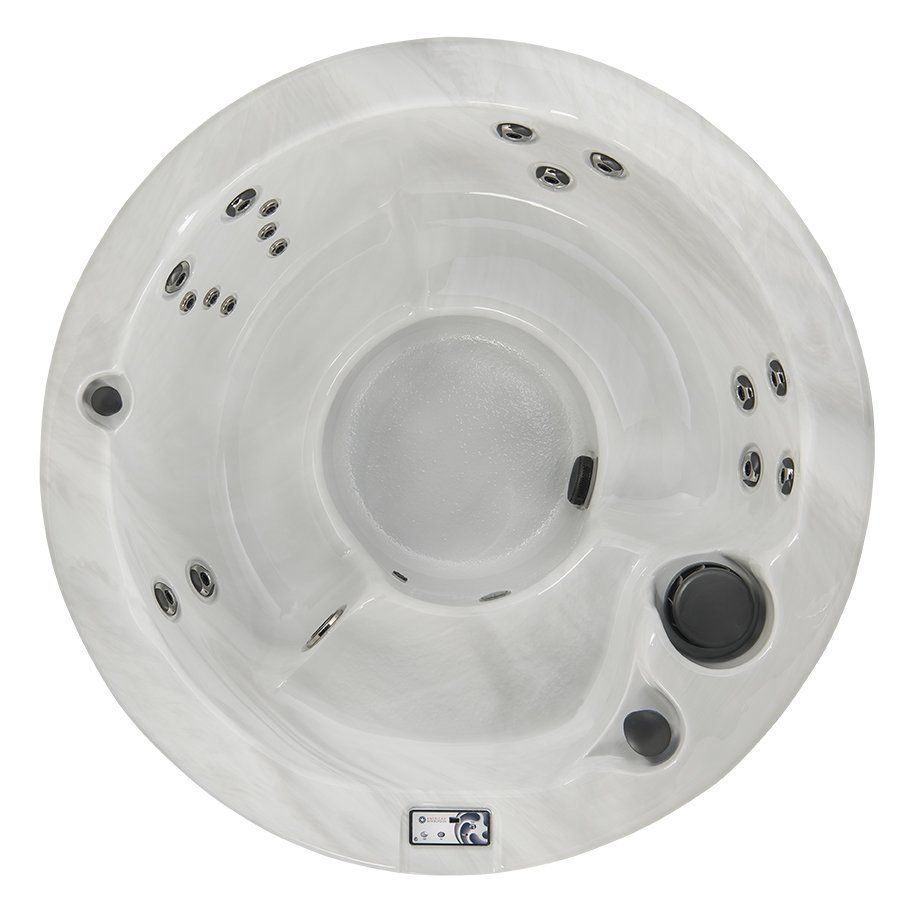

American Whirlpool 100
websitebuilder • January 8, 2020
Dimensions 76” Diameter
193 cm Diameter
Depth 36”
91 cm
Seating Capacity 4
Water Capacity (gal/liters) 200 gal/757 L
Weight (empty/full) 440 lbs/2,133 lbs
200 kg/968 kg
3.5” Underwater Spa Light Yes
Standard UTILITY Features
Programmable Filter Cycles Yes
Treated Wooden Frame Yes
DuraMAAX™ Cabinetry Yes
Thermo-Lock® Insulation Yes
HDPE Sealed Base Yes
Stainless Steel Jets Yes
Dynamic LED Lighting Yes
Pump1 1.5Hp/3.0bHp, 115V, 2Sp
Pump1(Export) 2.0Hp/4.0bHp, 230V, 2Sp
Electrical Requirements
(4-Wire) 240V/30A/40A
(3-Wire) 120V/15A/30A
Export 230V, 50 Hz, 1x16A
Jet Total 18
Optional Features
CleanZone™ System Yes
Dealer Installed Option:
GFCI Cord 15ft, 15A
Discover the benefits of professional swimming pool water treatment in The Villages, FL. Spa Kingdom Inc. offers expert care to keep your pool clean, safe, and hassle-free.
Seating: 6 Occupants Size (LxWxH): 92” x 92” x 38” 234 x 234 x 96.5 cm Weight Dry/Wet: 1160 / 4862 lbs. 526 / 2205 kg Gals/Liters: 446 / 1688 Pumps: Pump 1 3.0Hp/6.0bHp, 240V, 2Sp Pump 2 3.0Hp/6.0bHp, 240V, 2Sp Pump 3 3.0Hp/6.0bHp, 240V, 1Sp Voltage/Amps: 240V/50A/60A Jets: 61
Seating: 6-7 Occupants Size (LxWxH): 92" x 92" x 38" 234 x 234 x 96.5 cm Weight Dry /Wet: 1143 / 4621 lbs. 518 / 2096 kg Gals/Liters: 419 / 1586 Pumps: Pump 1 3.0Hp/6.0bHp, 240V, 2Sp Pump 2 3.0Hp/6.0bHp, 240V, 2Sp Pump 3 3.0Hp/6.0bHp, 240V, 1Sp Voltage/Amps: 240V/40A/60A Jets: 61
Seating: 5-6 Occupants Size (LxWxH): 83" x 83" x 38" 211 x 211 x 96.5 cm Weight Dry/Wet: 853 / 3402 lbs. 387 / 1543 kg Gals/Liters: 307 / 1162 Pumps: Pump 1 3.0Hp/6.0bHp, 240V, 2Sp Pump 2 3.0Hp/6.0bHp, 240V, 2Sp Voltage/Amps: 240V/40A/60A Jets: 52
Seating: 6-7 Occupants Size (LxWxH): 83" x 83" x 38" 211 x 211 x 96.5 cm Weight Dry/Wet: 776 / 3388 lbs. 352 / 1537 kg Gals/Liters: 315 / 1191 Pumps: Pump 1 3.0Hp/6.0bHp, 240V, 2Sp Pump 2 3.0Hp/6.0bHp, 240V, 2Sp Voltage/Amps: 240V/40A/60A Jets: 49
Dimensions 92” x 92” 234 cm x 234 cm Depth 38” 97 cm Seating Capacity 5-6 Water Capacity (gal/liters) 484 gal/1,832 L Weight (empty/full) 1,050 lbs/5,068 lbs 476 kg/2,299 kg Lounge 1 Illuminated Drink Holders 4 Illuminated Spa Controls Yes 3.5” Underwater Spa Light Yes
Dimensions 91.5” x 91.5” 232 cm x 232 cm Depth 38” 97 cm Seating Capacity 6 Water Capacity (gal/liters) 417 gal/1,579 L Weight (empty/full) 938 lbs/4,403 lbs 425 kg/1,997 kg Lounge 1 Illuminated Drink Holders 3 Illuminated Spa Controls Yes 3.5” Underwater Spa Light Yes
Dimensions 91.5” x 91.5” 232 cm x 232 cm Depth 38” 97 cm Seating Capacity 6 Water Capacity (gal/liters) 351 gal/1,329 L Weight (empty/full) 785 lbs/3,698 lbs 356 kg/ 1,677 kg Illuminated Drink Holders 5 Illuminated Spa Controls Yes 3.5” Underwater Spa Light Yes
Dimensions 87” X 87” 221 cm x 221 cm Depth 35” 89 cm Seating Capacity 5 Water Capacity (gal/liters) 347 gal/1,316 L Weight (empty/full) 808 lbs/3,703 lbs 367 kg/1,680 kg Lounges 2 Illuminated Drink Holders 3 Illuminated Spa Controls Yes Molded Grab Bars Yes 3.5” Underwater Spa Light Yes
Dimensions 87” X 87” 221 cm x 221 cm Depth 35” 89 cm Seating Capacity 6 Water Capacity (gal/liters) 345 gal/1,306 L Weight (empty/full) 820 lbs/3,703 lbs 372 kg/1,680 kg Lounge 1 Illuminated Drink Holders 4 Illuminated Spa Controls Yes Molded Grab Bar Yes 3.5” Underwater Spa Light Yes
