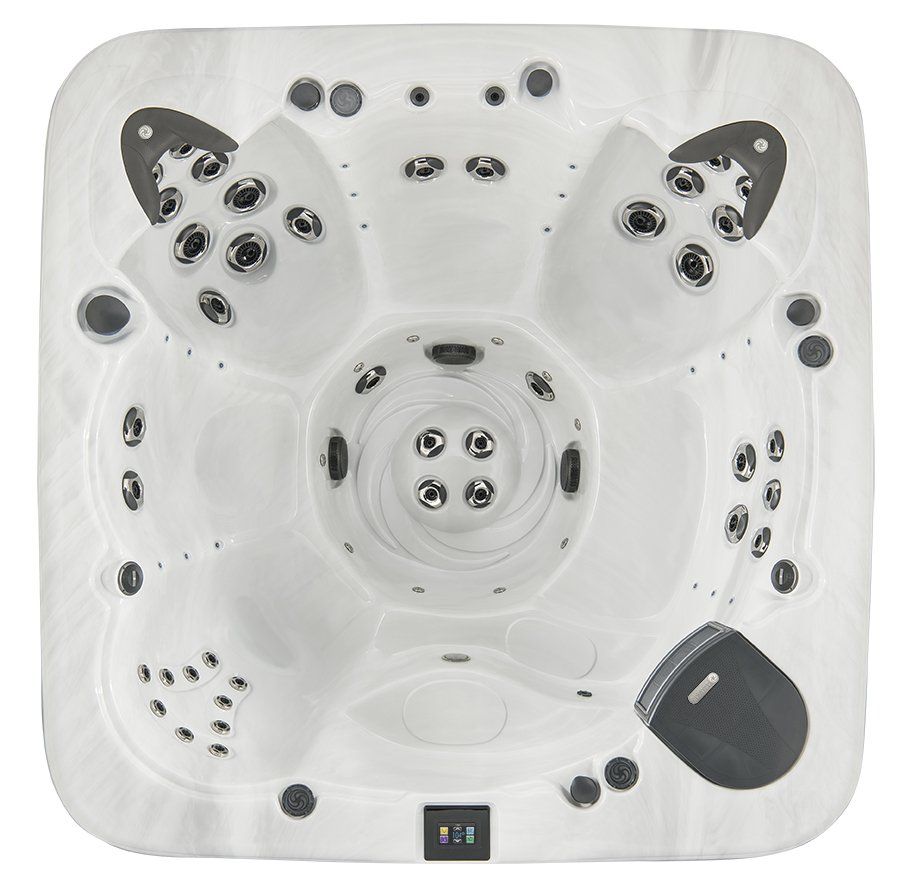

American Whirlpool 470
websitebuilder • January 8, 2020
Dimensions 87” X 87”
221 cm x 221 cm
Depth 35”
89 cm
Seating Capacity 6
Water Capacity (gal/liters) 296 gal/1,120 L
Weight (empty/full) 827 lbs/3,281 lbs
375 kg/1,488 kg
Illuminated Drink Holders 4
Illuminated Spa Controls Yes
3.5” Underwater Spa Light Yes
Standard Utility Features
Programmable Filter Cycles Yes
Steel Sub-Structure Yes
DuraMAAX™ Cabinetry Yes
ABS Bottom Pan Yes
Northern Exposure™ Insulation Yes
Touch Screen Top Side Control Yes
Comfort Collar™ 2
Foot Dome Yes
Zone Therapy™ Seat Yes
Shiatsu Seat Yes
Head Cushions 2
Chromatherapy Yes
Aurora Cascade Water Feature 2
Digital Color Optic Lighting (interior only) Yes
Stainless Steel Jets Yes
Pump1 3.0Hp/6.0bHp, 230V, 2Sp
Pump2 3.0Hp/6.0bHp, 230V, 2Sp
Pump1 (Export) 3.0Hp/6.0bHp, 230V, 2Sp
Pump2 (Export) 3.0Hp/6.0bHp, 230V, 2Sp
Electrical Requirements
(4-Wire) 240/40A/60A
Export 230V, 50Hz, 1x25A
Jet Total 48
Optional Features
AeroMAAX™ Plus (10 air jets) Yes
CleanZone™ System Yes
CleanZone™ Ultra Yes
Bluetooth Music System Yes
WiFi Connectivity Yes
Pedestal Lights Yes
X-Series Collar Yes
Discover the benefits of professional swimming pool water treatment in The Villages, FL. Spa Kingdom Inc. offers expert care to keep your pool clean, safe, and hassle-free.
Seating: 6 Occupants Size (LxWxH): 92” x 92” x 38” 234 x 234 x 96.5 cm Weight Dry/Wet: 1160 / 4862 lbs. 526 / 2205 kg Gals/Liters: 446 / 1688 Pumps: Pump 1 3.0Hp/6.0bHp, 240V, 2Sp Pump 2 3.0Hp/6.0bHp, 240V, 2Sp Pump 3 3.0Hp/6.0bHp, 240V, 1Sp Voltage/Amps: 240V/50A/60A Jets: 61
Seating: 6-7 Occupants Size (LxWxH): 92" x 92" x 38" 234 x 234 x 96.5 cm Weight Dry /Wet: 1143 / 4621 lbs. 518 / 2096 kg Gals/Liters: 419 / 1586 Pumps: Pump 1 3.0Hp/6.0bHp, 240V, 2Sp Pump 2 3.0Hp/6.0bHp, 240V, 2Sp Pump 3 3.0Hp/6.0bHp, 240V, 1Sp Voltage/Amps: 240V/40A/60A Jets: 61
Seating: 5-6 Occupants Size (LxWxH): 83" x 83" x 38" 211 x 211 x 96.5 cm Weight Dry/Wet: 853 / 3402 lbs. 387 / 1543 kg Gals/Liters: 307 / 1162 Pumps: Pump 1 3.0Hp/6.0bHp, 240V, 2Sp Pump 2 3.0Hp/6.0bHp, 240V, 2Sp Voltage/Amps: 240V/40A/60A Jets: 52
Seating: 6-7 Occupants Size (LxWxH): 83" x 83" x 38" 211 x 211 x 96.5 cm Weight Dry/Wet: 776 / 3388 lbs. 352 / 1537 kg Gals/Liters: 315 / 1191 Pumps: Pump 1 3.0Hp/6.0bHp, 240V, 2Sp Pump 2 3.0Hp/6.0bHp, 240V, 2Sp Voltage/Amps: 240V/40A/60A Jets: 49
Dimensions 92” x 92” 234 cm x 234 cm Depth 38” 97 cm Seating Capacity 5-6 Water Capacity (gal/liters) 484 gal/1,832 L Weight (empty/full) 1,050 lbs/5,068 lbs 476 kg/2,299 kg Lounge 1 Illuminated Drink Holders 4 Illuminated Spa Controls Yes 3.5” Underwater Spa Light Yes
Dimensions 91.5” x 91.5” 232 cm x 232 cm Depth 38” 97 cm Seating Capacity 6 Water Capacity (gal/liters) 417 gal/1,579 L Weight (empty/full) 938 lbs/4,403 lbs 425 kg/1,997 kg Lounge 1 Illuminated Drink Holders 3 Illuminated Spa Controls Yes 3.5” Underwater Spa Light Yes
Dimensions 91.5” x 91.5” 232 cm x 232 cm Depth 38” 97 cm Seating Capacity 6 Water Capacity (gal/liters) 351 gal/1,329 L Weight (empty/full) 785 lbs/3,698 lbs 356 kg/ 1,677 kg Illuminated Drink Holders 5 Illuminated Spa Controls Yes 3.5” Underwater Spa Light Yes
Dimensions 87” X 87” 221 cm x 221 cm Depth 35” 89 cm Seating Capacity 5 Water Capacity (gal/liters) 347 gal/1,316 L Weight (empty/full) 808 lbs/3,703 lbs 367 kg/1,680 kg Lounges 2 Illuminated Drink Holders 3 Illuminated Spa Controls Yes Molded Grab Bars Yes 3.5” Underwater Spa Light Yes
Dimensions 87” X 87” 221 cm x 221 cm Depth 35” 89 cm Seating Capacity 6 Water Capacity (gal/liters) 345 gal/1,306 L Weight (empty/full) 820 lbs/3,703 lbs 372 kg/1,680 kg Lounge 1 Illuminated Drink Holders 4 Illuminated Spa Controls Yes Molded Grab Bar Yes 3.5” Underwater Spa Light Yes
